FireFinder XLS

FireFinder XLS is a responsive intelligent fire detection system that detects fires and begins notifying occupants in less than 3 seconds. The large 6" full-color LCD display on the FireFinder XLS panel displays events color-coded by type, making it easy to understand and respond to an alarm.

A Highly Survivable System

The FireFinder XLSV offers unsurpassed intelligibility via a digital emergency voice evacuation system to facilitate communication and emergency exit from even the tallest hi-rise. The system is compatible with emerging technology and is listed for use in emergency communication and mass notification applications.

• Network “ring” topology ensures the continuity of communication in the event of a break in the network
• Redundant command stations enable two-way communication and protect against a single point of failure
• Class A risers and Style 7 wiring ensure the system will operate in accordance with the highest standards

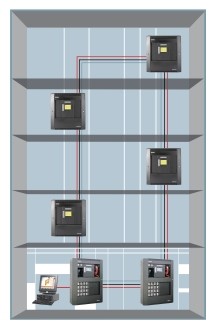

Using a ring topology ensures continuous communication even in the event of a disruption in the network.

Full Range of Detection Options

The FireFinder XLS is compatible with a wide variety of detection options allowing the protection of environments from sensitive to harsh to be protected with equal reliability.

Integration with VESDA Detectors

• Displays full range of VESDA alarm and status signals at the panel
• Allows VESDA detectors to be reset from the fire panel
• Connect multiple VESDA detectors on a single panel for a cost-effective datacenter solution
• Meets NFPA 76 Telecommunications Standards

Compatibility with ASAtechnology™ Detectors

• Access more than 20 application-specific detection profiles
• Optional integrated carbon monoxide detection to protect areas such as sleeping rooms
• Supports audible signal patterns for life safety events such as Temporal Four coded signal
• RoHS compliant for more environmentally-friendly fire detection
• Meets standards for Very Early Warning Fire Detectors and NFPA 76 Telecommunications standard
